2020 Allmand MH500IQ Maxi-Heat Diesel Heater/Genset

2020 Allmand MH500IQ Maxi-Heat, 1,000,000 BTU Diesel Heater/Genset

2020 Allmand MH500IQ

Manufactured: September 2019

Hour Meter: 8,024

Engine: Caterpillar C1.5 T4F liquid-cooled diesel / Genset

*Electrical output provided by Allmand testing 60 Hz, 9 kW single-phase

Fuel Capacity: 175 gal double-wall single-cell metal fuel tank *Will operate approximately 20 hrs. without refueling at full load with both burners running.

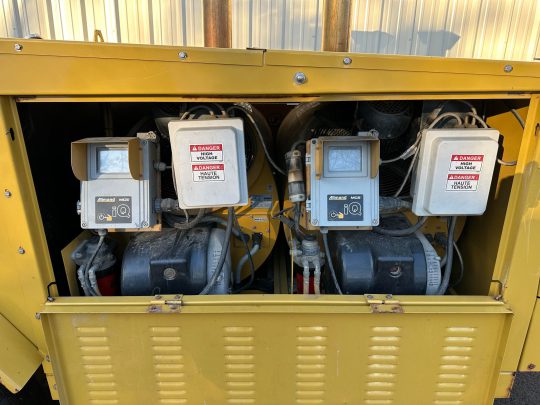

Heater: (2) MCS500iQ indirect-fired twin heating units up to 500,000 BTU/hr each

Air Duct Connection: 16 in. duct flange

Air Ducting: 16 in. Flexible ducting easily connects to heater output flanges

2.3” wc static pressure allows use of 110 ft. (33.5 m) of 16 in. ducting

Electronically-controlled temperature

Easy-clean combustion chamber

(2) automatic nozzles

iQ controls environmental temperature/pressure and suggests correct burner settings

Heated Air Output: 6,200 CFM total with no ducting

Temperature Rise: 185° F (85° C)

Trailer Fluid containment system Safety chains

Formed, welded steel frame Front screw jack

2″ Ball Attachment

Heavy-gauge steel enclosure Interior compartment light

6,000 lbs. (2,722 kg) leaf spring axle Electric brakes

Wheels: 16 x6JJ Steel

Tires: ST235/80R 160

Tire Pressure: 65 PSI

Shipping Information:

Overall Dimensions: 80″W x 194:L x 87″H

Shipping Weight: Dry: 3,675 lbs. (1,667 kg) | Wet: 6,000 lbs. (2,722 kg)

UNIT WAS SERVICED AND GREASED! READY TO WORK!
